Top Post Battery Disconnect Switch with Voltmeter, DC 5-60V Battery Kill Switch Master Isolator On Off Kill Switch Power Cut/Shut Off Switch for Boat Car RV Truck Camper Trailer

Overview

• Operation Mode : ON-OFF
• Current Rating : 250 Amps
• Operating Voltage : 60 Volts
• Contact Type : Normally Closed
• Connector Type : Clamp
• Brand : Lanmun
• Terminal : Screw
• Item dimensions L x W x H : 6.2 x 2.5 x 1.9 inches
• Circuit Type : 2-way
• Contact Material : Plastic
• Switch Type Rotary : Material Copper, Plastic
• : Switch Type Rotary
• : Material Copper, Plastic
• Mounting Type Surface Mount : Specification Met CE
• : Mounting Type Surface Mount
• : Specification Met CE

About this item

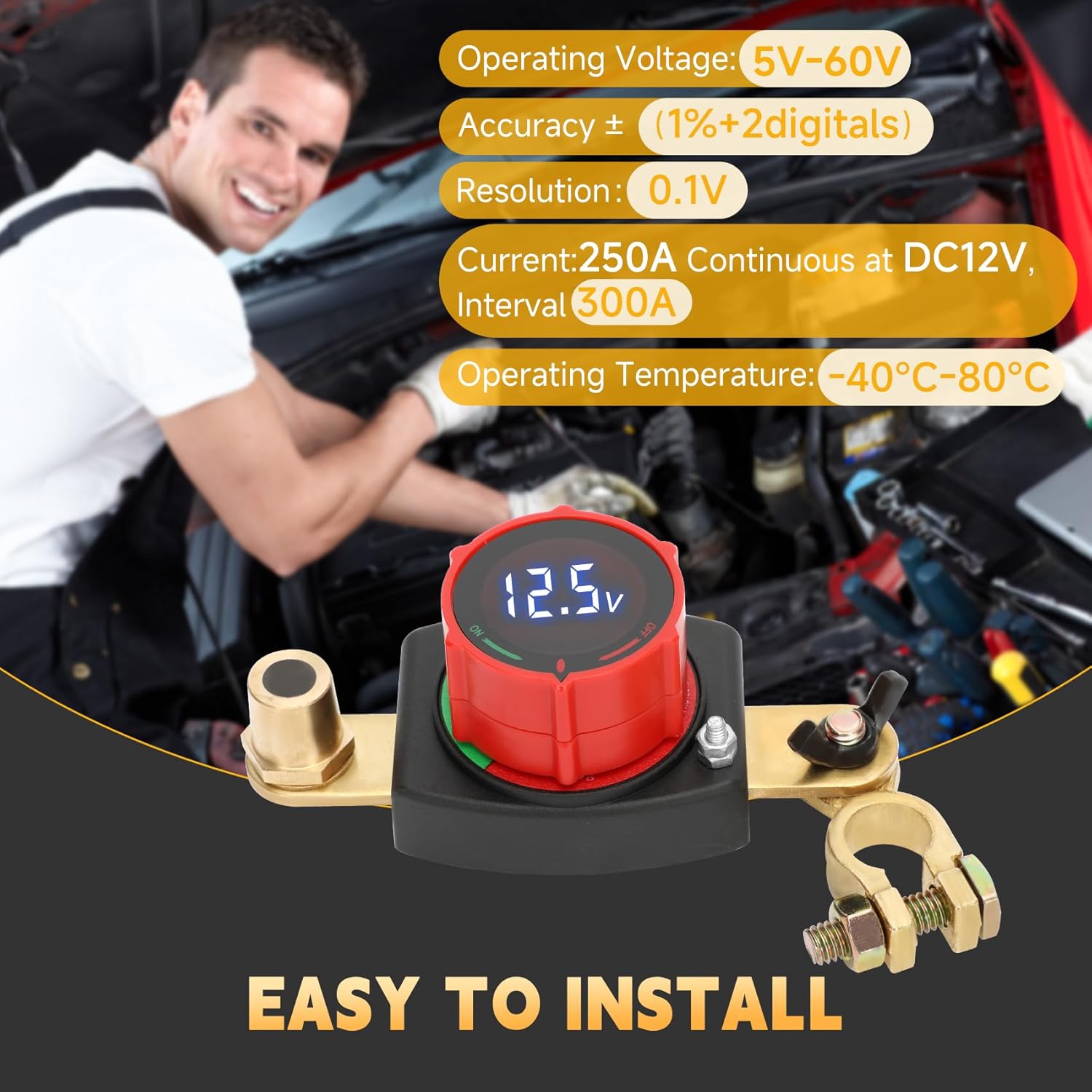

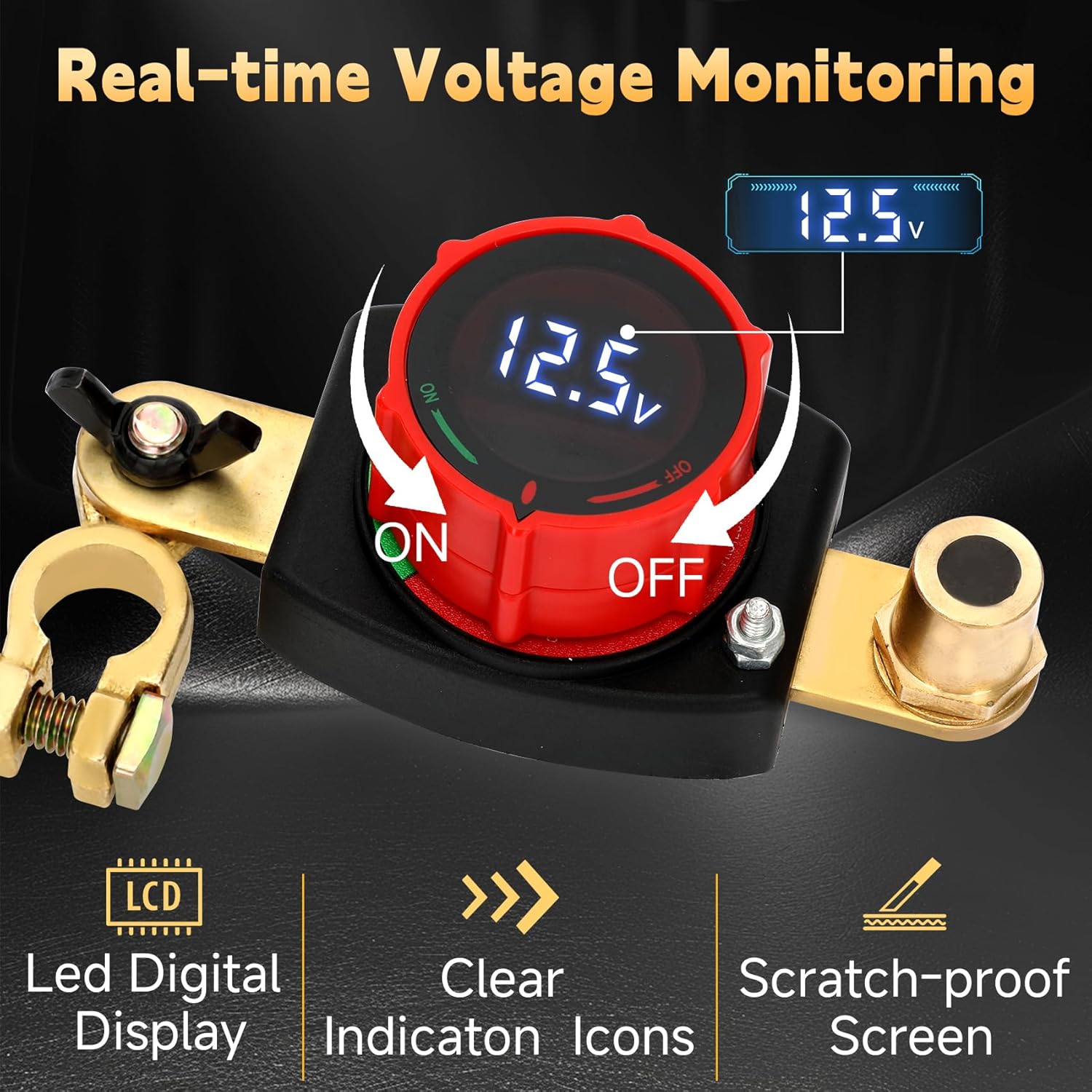

• Real-time Voltage Monitoring: Features a large matte-finish LED display that shows the current system voltage (5-60V DC) in real-time when the switch is ON, helping you accurately monitor battery status. The display turns OFF when the switch is OFF. The matte surface prevents scratches and enhances readability in bright light.
• Robust & Reliable Switching: Top-mounted rotary knob with 2-position operation (Turn clockwise to ENGAGE, counter-clockwise to DISCONNECT). Powerful Performance: Rated for 250A continuous current at 12V DC, with a 300A intermittent rating. Wide Voltage Compatibility: Suitable for 6V, 12V, 24V, 48V, and 60V DC systems.

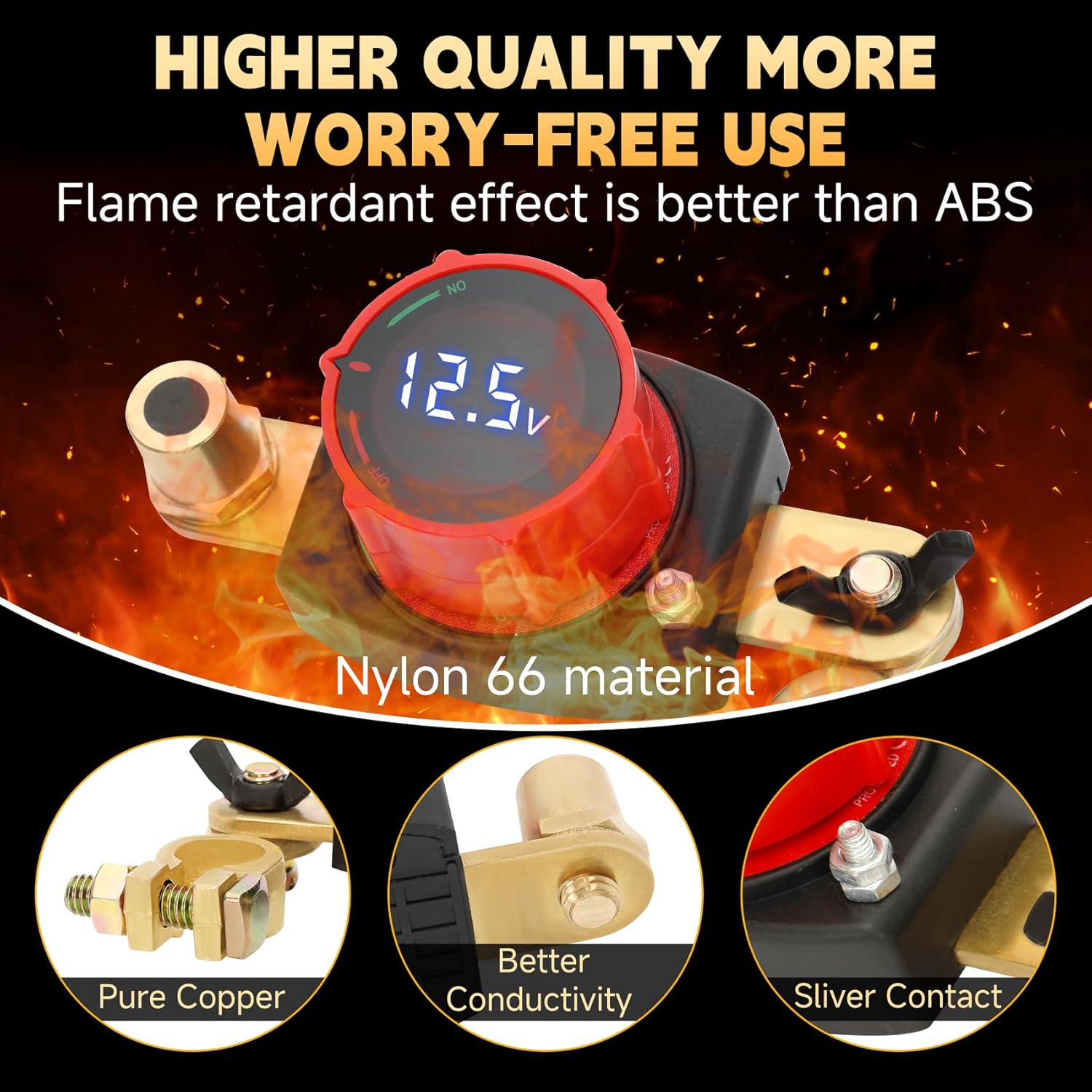

• Premium Quality & Durability: Upgraded materials address common market issues:High Flame-Resistant Housing: Made of Nylon 66, offering superior flame resistance compared to standard ABS plastic for enhanced safety.
• Top-Tier Electrical Contacts: Internal screw core and contacts feature a silver-plated copper core with silver contacts, ensuring excellent conductivity, superior oxidation resistance, and significantly extended service life.

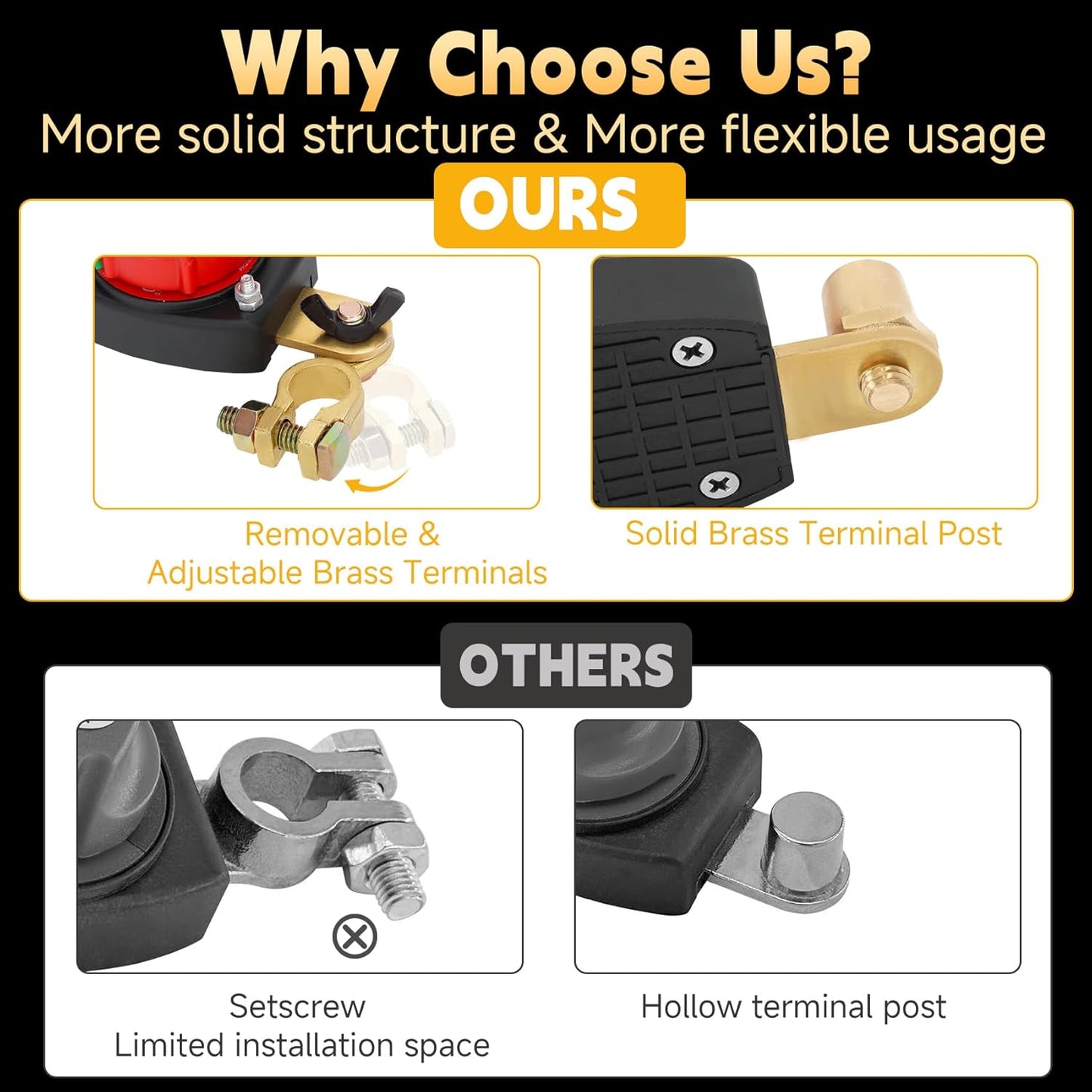

• Flexible & Easy Installation:Removable & Rotatable Terminals: Side terminals are removable and can be freely rotated to suit various wiring configurations.Optimized design ensures terminals lock firmly onto cables.
• Wide Application: Designed for isolating and securing 5-60V DC electrical systems. Can be used individually or ganged/locked with other switches. Ideal for: Cars, Marine Applications, Boats, RVs, Campers, Travel Trailers, Trucks, ATVs, UTVs, Battery Banks, and other electrical equipment.
